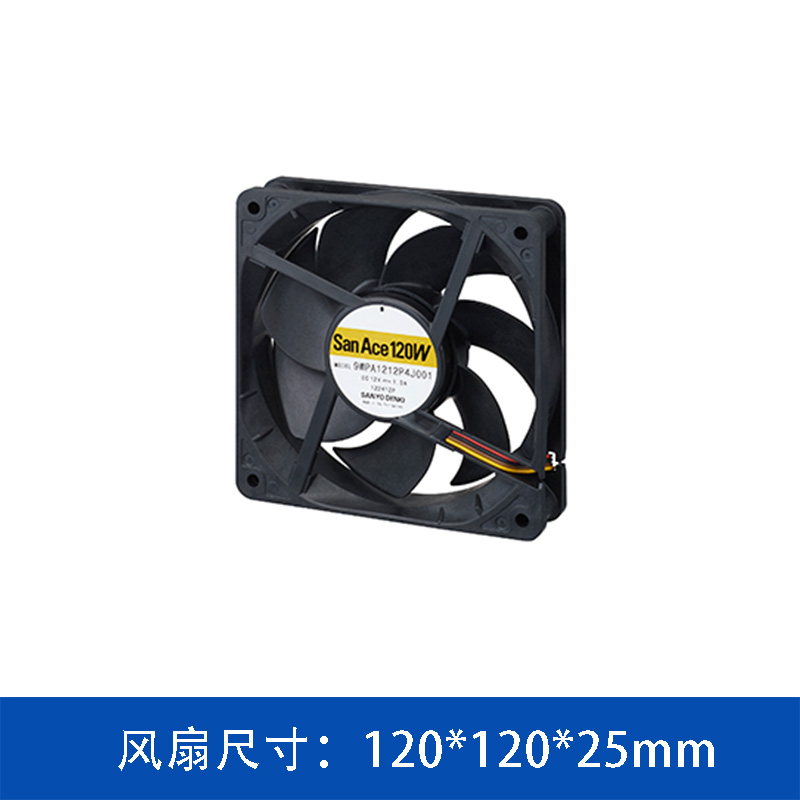

12025 24V Splash Proof Fan

9WPA1224G4001

Brand: SanAce (Japan sanyodenki)
Size: 120x120x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 3-wire
Product description: SANYO DENKI San Ace 9WPA1224G4001 is a 120x120x25mm DC splash proof axial fan with IP68 rating, 24V rated voltage, and 117CFM max airflow, designed for high-humidity environments like industrial and o
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
暫無數據

PRODUCT PRESENTATION

（一）Product Overview

The SANYO DENKI San Ace 9WPA1224G4001 is a high-performance 120x120x25mm DC axial cooling fan designed for demanding environments. With an IP68 splash proof rating, it offers reliable operation in high-humidity, wet, or dusty conditions. This fan combines robust construction, efficient airflow, and long service life, making it ideal for industrial, outdoor, and harsh environment cooling applications.

（二）Key Features

IP68 Splash Proof Design: Fully protected against dust and water immersion, ensuring stable performance in wet or humid environments.
High Airflow & Static Pressure: Delivers a maximum airflow of 117 CFM (3.30 m3/min) and a maximum static pressure of 135 Pa (0.54 inchH?O), effectively cooling high-heat components.
Wide Operating Temperature Range: Operates reliably from -20°C to +70°C, suitable for extreme temperature conditions.
Durable Plastic Frame: Lightweight yet sturdy plastic frame (25mm thickness) provides excellent structural integrity and corrosion resistance.
Pulse Sensor for Speed Monitoring: Equipped with a pulse sensor to monitor fan speed, enabling real-time performance tracking and fault detection.
Long Service Life: Expected life of 40,000 hours at 60°C (70,000 hours at 40°C), ensuring low maintenance and high reliability.

（三）Technical Specifications

表格

Specification Category	Parameter	Value
Basic Information	Model No.	9WPA1224G4001
	Frame Size (mm)	120
	Frame Thickness (mm)	25
	Frame Material	Plastic
Electrical Performance	Rated Voltage (V)	24
	Operating Voltage Range (V)	14~27.6
	Rated Current (A)	0.25
	Rated Input (W)	6.00
Airflow & Pressure	Rated Speed (min?1)	4250
	Max. Airflow (m3/min)	3.30
	Max. Airflow (CFM)	117
	Max. Static Pressure (Pa)	135
	Max. Static Pressure (inchH?O)	0.54
Environmental & Reliability	Operating Temperature (°C)	-20~+70
	IP Rating	IP68
	Expected Life (h)	40000/60°C (70000/40°C)
	Mass (g)	240
Control & Monitoring	Sensor Type	Pulse Sensor
	PWM Control Function	No

（四）Application Scenarios

Industrial Equipment: Cooling for PLCs, motor drives, and industrial control cabinets in humid or dusty factories.
Outdoor Enclosures: Protecting electronic components in outdoor communication cabinets, surveillance systems, and solar inverters from rain and dust.
Food & Beverage Industry: Sanitary cooling in food processing equipment where frequent washing and high humidity are common.
Marine & Transportation: Cooling systems in marine electronics, railway signaling equipment, and other environments exposed to moisture.
Agricultural Machinery: Ventilation and cooling for agricultural equipment operating in wet or muddy conditions.

（五）Certifications & Compliance

Eco Products: Designed with environmental sustainability in mind.
UL Ratings: Meets UL safety standards for electrical equipment.
CSA Standards: Compliant with Canadian Standards Association requirements.
EN Standards: Adheres to European Norms for product safety and performance.
RoHS Directive: Free from hazardous substances, compliant with EU RoHS regulations.
Splash Proof: Certified for splash and water resistance (IP68).

（六）Why Choose San Ace 9WPA1224G4001?
