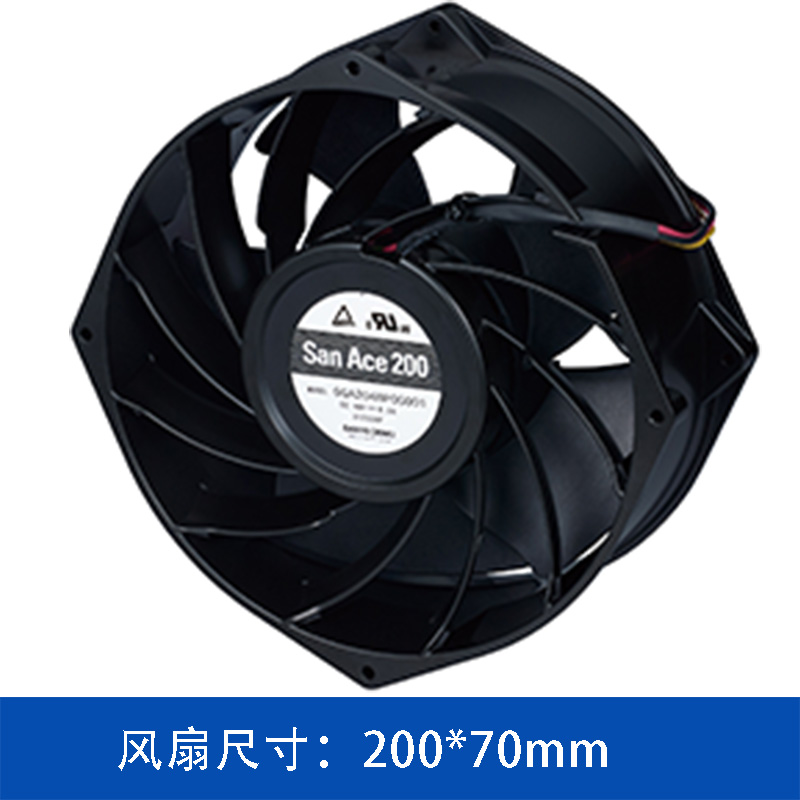

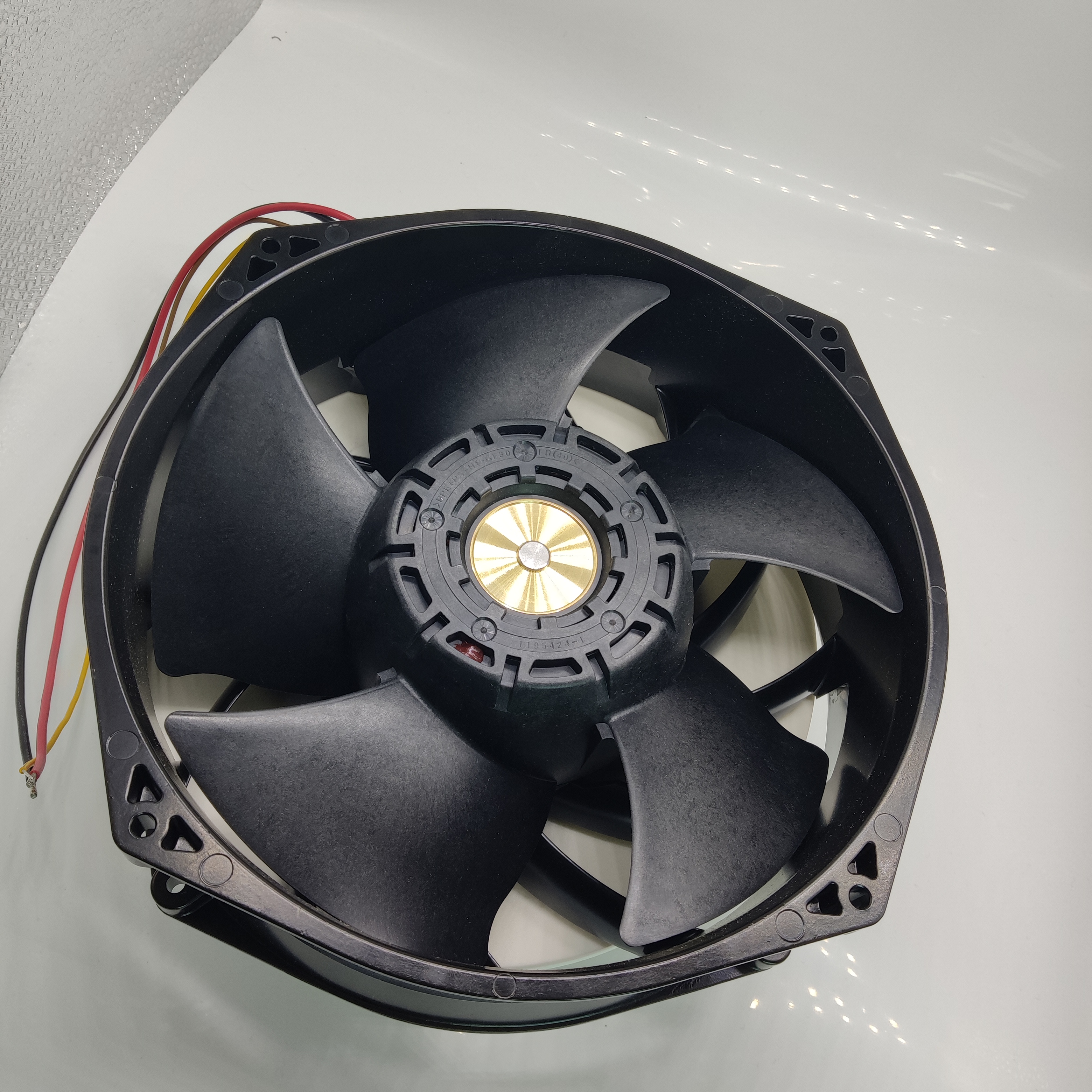

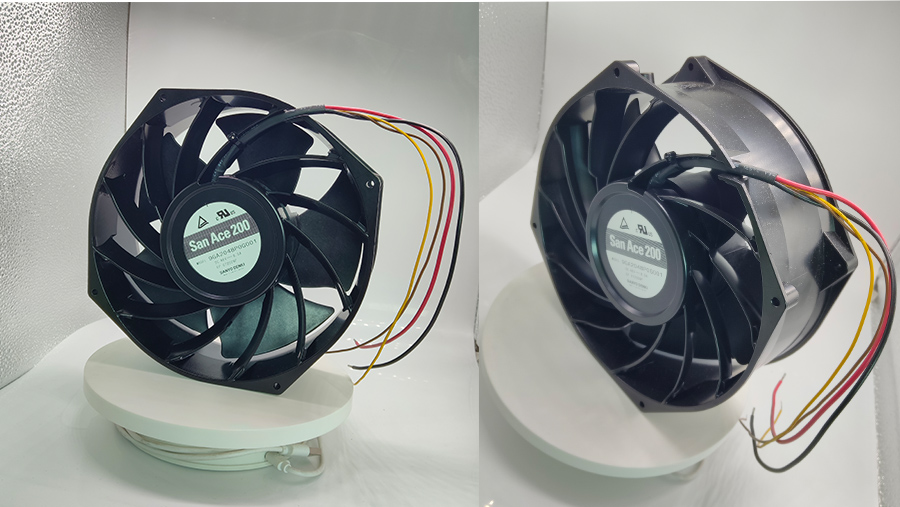

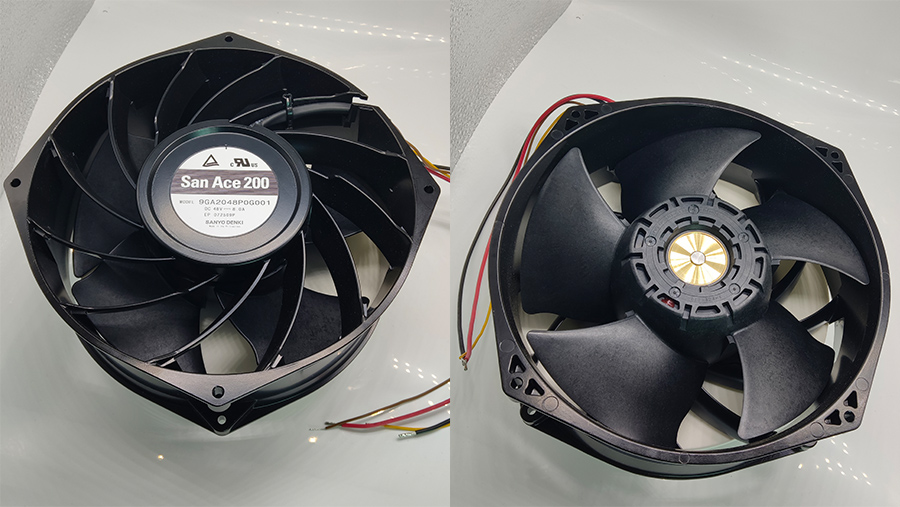

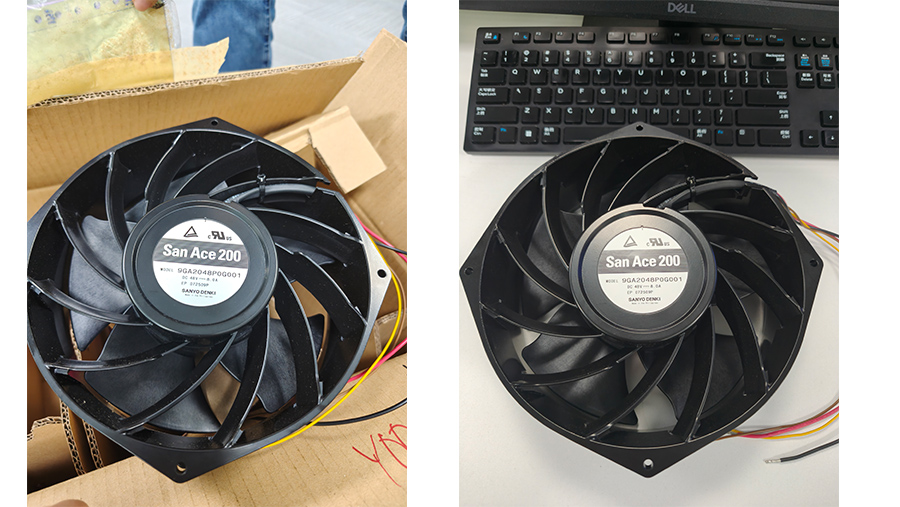

Sanyo Denki San Ace 200 Low Power Consumption Fan – Model 9GA2048P0G001
Product Overview
The San Ace 200 (9GA type) represents the next generation of industrial cooling solutions from Sanyo Denki. The 9GA2048P0G001 model is specifically engineered for high-reliability applications requiring a balance of massive airflow and energy efficiency.
Operating at 48V DC, this 200x70mm fan delivers a maximum airflow of 30.7 m3/min (1084 CFM) while consuming significantly less power than conventional models. Featuring intelligent PWM speed control, it allows for precise thermal management, reducing noise and extending system life. Certified as an Eco Product and compliant with RoHS, it is the ideal choice for green data centers, telecom infrastructure, and industrial power systems.
Key Features and Benefits
1. Significant Energy Savings (Low Power Consumption)
-
36% Less Power: Compared to previous standard models, this fan operates on approximately 36% less power while maintaining equivalent airflow and static pressure.
-
Cost Efficiency: Reduces overall electricity costs for 24/7 operating environments like server rooms and base stations.
2. Intelligent PWM Speed Control
-
Precision Cooling: Equipped with a pulse sensor and PWM control function, allowing the fan speed to be adjusted dynamically based on real-time temperature needs.
-
Noise Reduction: Ability to run at lower speeds during low-load conditions minimizes acoustic noise (SPL).
3. Eco-Friendly and Compliant
-
Eco Product Certified: Designed with environmentally friendly resources and technologies throughout its lifecycle.
-
RoHS Compliant: Manufactured with lead-free brass, strictly adhering to the EU RoHS Directive for hazardous substance restriction.
4. Robust Industrial Design
-
Durable Frame: Constructed with a high-strength Aluminum frame for superior heat dissipation and structural integrity.
-
Wide Operating Range: Functions reliably in temperatures from -20°C to +70°C.
-
Long Life Expectancy: Rated for 40,000 hours at 60°C (and up to 70,000 hours at 40°C), ensuring minimal maintenance.
Technical Specifications
|
Parameter
|
Specification
|
|
Model Number
|
9GA2048P0G001
|
|
Series
|
San Ace 200 (9GA Type)
|
|
Frame Size
|
200 x 200 x 70 mm
|
|
Rated Voltage
|
48 V DC
|
|
Operating Voltage Range
|
36 ~ 60 V DC
|
|
Rated Current
|
8.0 A
|
|
Rated Input Power
|
384 W
|
|
Rated Speed
|
7800 min?1 (RPM)
|
|
Max. Airflow
|
30.7 m3/min (1084 CFM)
|
|
Max. Static Pressure
|
1350 Pa (5.40 inchH?O)
|
|
Sound Pressure Level (SPL)
|
81 dB(A)
|
|
Sensor / Control
|
Pulse Sensor / PWM Control Function
|
|
Expected Life
|
40,000 hrs @ 60°C / 70,000 hrs @ 40°C
|
|
Weight
|
1500 g
|
|
Material
|
Aluminum Frame
|
|
Certifications
|
UL, CSA, EN, RoHS, Eco Product
|
Note: PWM frequency is 25 kHz. Models without ratings for 0% PWM duty cycle have zero speed at 0%.
Typical Applications
Due to its high static pressure and large volume airflow, the 9GA2048P0G001 is perfect for:
-
Industrial Servers and Data Centers: High-density rack cooling.
-
Telecommunications: Base station cabinets and outdoor enclosures.
-
Power Supply Units (PSU): Cooling for high-wattage industrial inverters and UPS systems.
-
Medical Equipment: MRI/CT scanners requiring reliable, continuous cooling.
-
Semiconductor Manufacturing: Process chamber cooling.
Package Includes
-
1 x Sanyo Denki San Ace 200 Fan (Model 9GA2048P0G001)
-
User Manual / Warranty Card
Why Choose This Model?
If your project demands high-performance cooling in a compact 200mm form factor but requires strict adherence to energy-saving goals and environmental regulations, the San Ace 200 9GA2048P0G001 is the definitive solution. Its 48V architecture makes it uniquely suited for modern telecom and industrial power infrastructures.
